UE Engine 製品情報

UEC80LSE-Eco-A2

7-80LSE-Eco
Electronically controlled
Technical Data


Main data

Cylinder bore [mm] 800
Piston stroke [mm] 3 150
BMEP at P1 [bar] 20.0
Piston speed at P1 [m/s] 8.4
Stroke / bore 3.94

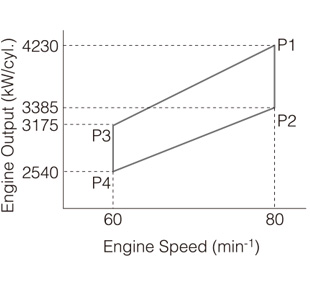

Rated power [kW]

Speed 80 min-1 60min-1
Cyl. P1 P2 P3 P4
5 21 150 16 925 15 875 12 700
6 25 380 20 310 19 050 15 240
7 29 610 23 695 22 225 17 780
8 33 840 27 080 25 400 20 320

Principle dimension [mm]

Cyl. L LCC B C D F1 G
5 8 658 1 380 5 000 1 736 11 725 14 247 2 524
6 10 038 1 380 5 000 1 736 11 725 14 247 2 524
7 11 418 1 380 5 000 1 736 11 725 14 247 2 524
8 12 798 1 380 5 000 1 736 11 725 14 247 2 524

L: Minimum length of engine LCC: Distance between cylinder centers B: Bedplate width at foot flange C: Crankshaft to underside of foot flange D: Engine height from crankshaft center G: Distance from bedplate bottom to crankshaft center F1: Piston overhaul height with standard tool

Weight [ton]

Cyl.   HPSCR
5 693 *
6 794 *
7 895 *
8 996 *
  * To be determined

SFOC variation

UEC80LSE-Eco-A2, complied with IMO Tier Ⅱ SFOC [g/kWh] with standard

Load  P1 P2 P3 P4
100% 167.0 163.0 167.0 163.0
75% 161.5 157.7 161.5 157.8
50% 163.0 159.8 163.0 159.8

UEC80LSE-Eco-A2, complied with IMO Tier Ⅱ SFOC [g/kWh] with LLO

Load  P1 P2 P3 P4
100% 168.6 164.6 168.6 164.6
75% 160.8 157.0 160.8 157.1
50% 161.5 158.3 161.5 158.3

UEC80LSE-Eco-A2, complied with IMO Tier Ⅱ SFOC [g/kWh] with LLO+EGB

Load  P1 P2 P3 P4
100% 170.1 166.1 170.1 166.1
75% 160.8 157.0 160.8 157.1
50% 160.8 157.6 160.8 157.6

UEC80LSE-Eco-A2-HPSCR, complied with IMO Tier Ⅲ SFOC [g/kWh] with LLO+EGB

Mode Load  P1 P2 P3 P4

 Tier Ⅱ Mode

100% 170.1 166.1 170.1 166.1
75% 160.8 157.0 160.8 157.1
50% 160.8 157.6 160.8 157.6


Tier Ⅲ Mode


100% 170.4 166.4 170.4 166.4
75% 161.0 157.2 161.0 157.3
50% 161.2 158.0 161.2 158.0
