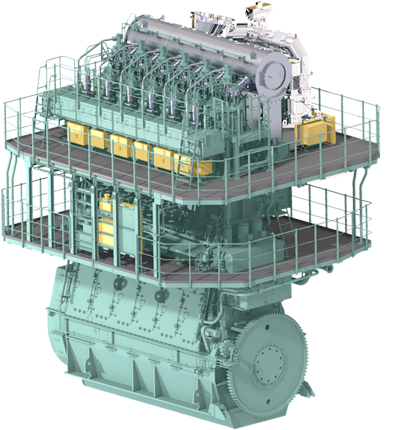

UE Engine

UEC50LSH-Eco-C3

6-50LSH-Eco-C3
Electronically controlled
EPD Calculator TOP Technical Data Installation Drawings Extent of Delivery

Main data

Cylinder bore 500
Piston stroke 2 300
BMEP at P1 [bar] 21.9
Piston speed at P1 [m/s] 8.3
Stroke / bore 4.60

Rated power [kW]

Speed 108 min-1 81min-1
Cyl. P1 P2 P2e P3 P4 P4e
5 8 900 6 175 5 775 6 675 4 625 4 350
6 10 680 7 410 6 930 8 010 5 550 5 220
7 12 460 8 645 8 085 9 345 6 475 6 090
8 14 240 9 880 9 240 10 680 7 400 6 960

Principle dimension [mm]

Cyl. L LCC B C D F1 F2 G
5 5 547 870 3 350 1 190 8 448 10 050 9140 1 700
6 6 417 870 3 350 1 190 8 448 10 050 9140 1 700
7 7 287 870 3 350 1 190 8 448 10 050 9140 1 700
8 8 157 870 3 350 1 190 8 448 10 050 9140 1 700

L: Minimum length of engine LCC: Distance between cylinder centers B: Bedplate width at foot flange C: Crankshaft to underside of foot flange D: Engine height from crankshaft center G: Distance from bedplate bottom to crankshaft center F1: Piston overhaul height with standard tool F2: Piston overhaul height with special tool

Weight [ton]

Cyl.   EGR HPSCR
5 194 +9 *
6 225 +11 *
7 257 +12 *
8 289 +14 *
  * To be determined

SFOC variation

UEC50LSH-Eco-C3, complied with IMO Tier Ⅱ SFOC [g/kWh] with standard

Load  P1 P2 P2e P3 P4 P4e
100%  164.0 157.3 157.8 164.0 157.3 157.7
75%  158.5 151.8 152.3 158.5 151.8 152.2
50% 160.0 153.3 153.8 160.0 153.3 153.7

UEC50LSH-Eco-C3, complied with IMO Tier Ⅱ SFOC [g/kWh] with LLO

Load  P1 P2 P2e P3 P4 P4e
100%  165.6 158.9 159.4 165.6 158.9 159.3
75%  157.8 151.1 151.6 157.8 151.1 151.5
50% 158.5 151.8 152.3 158.5 151.8 152.2


UEC50LSH-Eco-C3, complied with IMO Tier Ⅱ SFOC [g/kWh] with LLO+EGB

Load  P1 P2 P2e P3 P4 P4e
100%  167.1 160.4 160.9 167.1 160.4 160.8
75%  157.3 150.6 151.1 157.3 150.6 151.0
50% 156.6 149.9 150.4 156.6 149.9 150.3

UEC50LSH-Eco-C3-EGR, complied with IMO Tier Ⅲ SFOC [g/kWh] with LLO+EGB

Mode Load  P1 P2 P2e P3 P4 P4e

 Tier Ⅱ Mode

100% 167.1 160.4 160.9 167.1 160.4 160.8
75% 157.3 150.6 151.1 157.3 150.6 151.0
50% 156.6 149.9 150.4 156.6 149.9 150.3


Tier Ⅲ Mode


100% 167.2 160.5 161.0 167.2 160.5 160.9
75% 159.4 152.7 153.2 159.4 152.7 153.1
50% 159.3 152.6 153.1 159.3 152.6 153.0

UEC50LSH-Eco-C3-HPSCR, complied with IMO Tier Ⅲ SFOC [g/kWh] with LLO+EGB

Mode Load  P1 P2 P2e P3 P4 P4e

 Tier Ⅱ Mode

100% 167.1 160.4 160.9 167.1 160.4 160.8
75% 157.3 150.6 151.1 157.3 150.6 151.0
50% 156.6 149.9 150.4 156.6 149.9 150.3


Tier Ⅲ Mode


100% 167.4 160.7 161.2 167.4 160.7 161.1
75% 157.5 150.8 151.3 157.5 150.8 151.2
50% 157.0 150.3 150.8 157.0 150.3 150.7
